【Features and Advantages】

●Equipped with manual/automatic two modes of spitting function.

●Ultra-small shape, saving working space.

● LCD display, easy to read dispensing parameters, with timing function.

●It has a wide range of debugging from 0 low pressure to maximum 0.70Mpa, so high-viscosity materials can also be processed.

●The standard equipment is equipped with a vacuum mechanism to prevent glue leakage.

●Vacuum suction adjustment mechanism to prevent dripping and leakage.

●With manual mode, you can set the dispensing time and interval time, making the machine's glue application more accurate and convenient.

●It is an integrated machine that gathers miniaturization, high performance, high efficiency, and high precision.

●Achieved excellent operability and repeatability.

【Product Specifications】

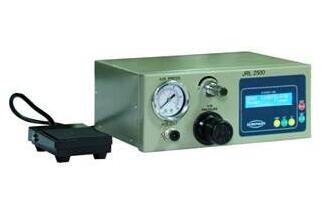

Product Numbers: JRL-2500

Control method: electronic/pneumatic

Negative pressure range: -20~0kpa

Air source: <1mpa (dry and clean air pressure)

Setting of suction function: the amount of suction can be set freely

Dispensing time range: 0.001~9.999s

Interval time range: 0.001~9.999s

Power supply/power consumption: AC220V 50/60Hz (Note 1)/16W

Dimensions: 220*162*90mm

Weight: 2.8kg

【use】

☆Adhesive, encapsulation, coating, sealing, filling, dot coating, linear coating, etc.
