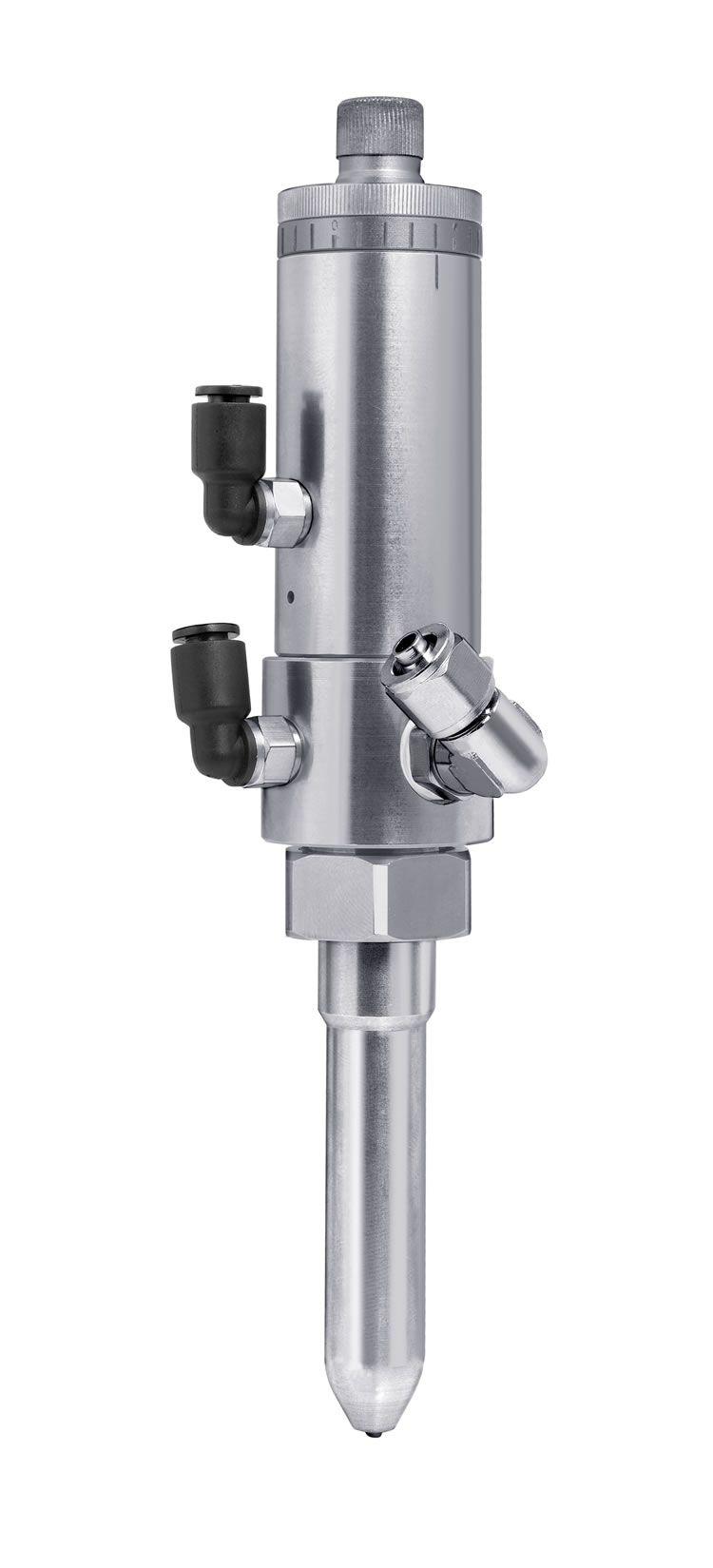

The PS103 series selective spraying valve is made of stainless steel and Teflon. The process control of the spraying volume can be achieved by calibrating the stroke setting knob.

‚The PS103 valve provides three glue dispensing modes: linear, filament, and atomized, which can be achieved by setting different atomizing air pressures. The control gas path is divided into valve opening gas path and atomizing gas path. The amount of spraying depends on the valve opening time, fluid pressure, fluid viscosity, striker stroke and selected nozzle specifications. The spray width depends on the distance from the nozzle to the substrate. The edge resolution of the spraying operation is high, which is especially suitable for packaging and protection operations in the electronics industry. It is an ideal choice for surface coating applications.

ƒThe nozzle is easy to clean. The zero-cavity nozzle can prevent material from clogging during operation. It can be cleaned without disassembly. There are few parts that need to be replaced or cleaned. This nozzle is easier to handle materials with a short colloidal storage period. The three modes together provide a dispensing pattern to meet the user's application.

④ Considering precise control, high flow rate can quickly produce thin film coating, and colloidal flow channel provides uniform flow distribution. The atomizing air and the colloid cavity work together to quickly react to changes during operation.

【Features and Advantages】

⑴ There are three coating methods for one nozzle: linear, filament, and atomized. One valve is equivalent to three valves.

⑵High flow rate: the film thickness can be quickly and accurately controlled, and the thickness of a single layer film ranges from 25 mils to more than 20 mils.

⑶In a coating cycle, the mode can be changed instantly during flight.

⑷It can handle many materials with viscosity ranging from 30 to 4000mqas (30-4000 centipoise).

Few parts in contact with fluid, easy to disassemble, wash and maintain.

⑸It is easier to handle materials with short memory, and the real zero-cavity design makes the needle without glue residue after dispensing.

【Product Specifications】

Model: SPS-PS103

Size: 157mm*28mm

Weight: 243 grams

Start intake pressure: 70psi (4.8bar)

Maximum discharge pressure: 300psi (20.7bar)

Fluid input: 1/8RC

Fixing method: M5 fixing hole or adjustable fixing block

Working frequency: more than 400 times/min

Valve body: stainless steel

Material of parts in contact with fluid: fluid tank, firing pin and nozzle are all stainless steel

Firing pin seal: Teflon

【Application field】

Electronic control boards, instrumentation circuit boards, industrial and agricultural equipment control boards, battery protection boards, outdoor LED display control boards, inverter circuit boards, security control boards, etc.
